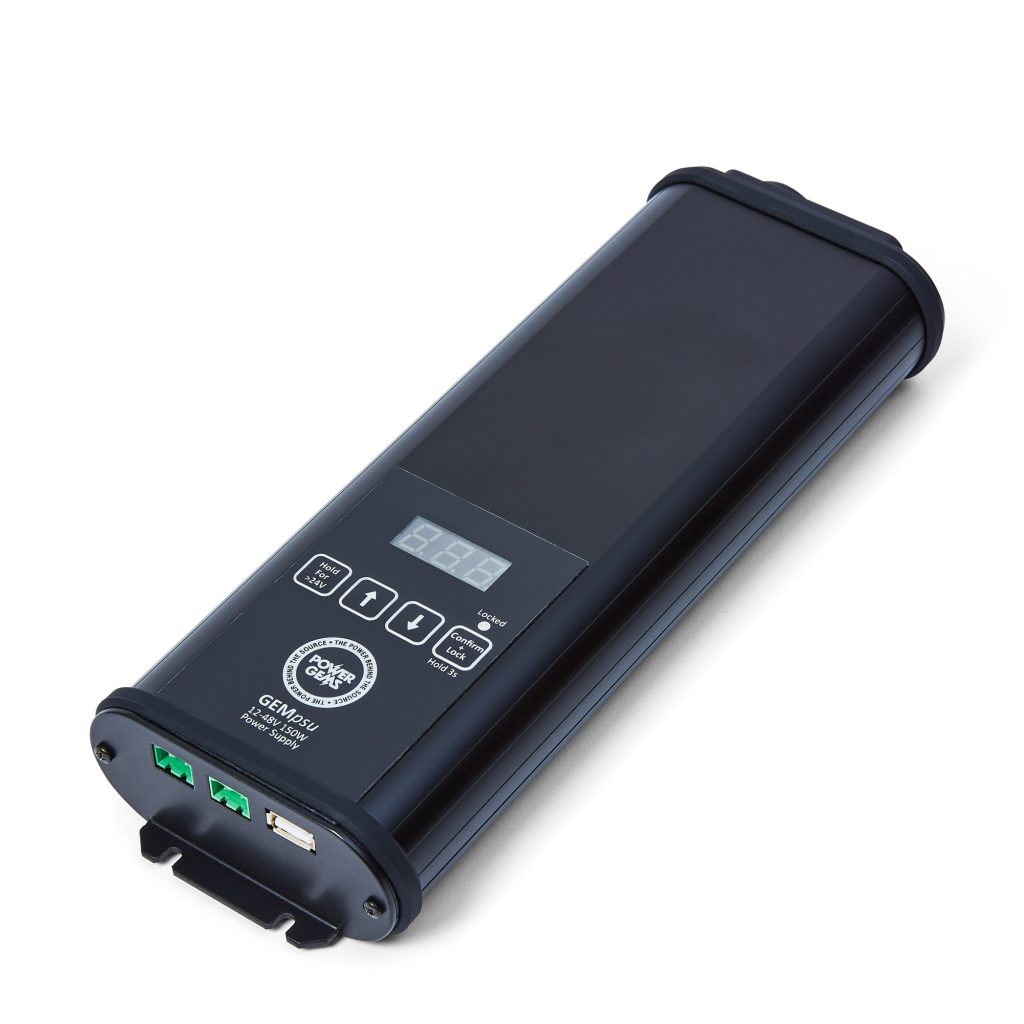

Variable Voltage (12V-48V) LED Power Supply
GEMpsu
The GEMpsu produces output voltages from 12V to 48V, so you will always have the right power supply for every job. Need to change to a 24V LED ribbon at the last minute? Not a problem! It’s as easy as selecting the voltage on the intuitive keypad. With 150W of power available, GEMpsu can happily drive a 5m reel of LED ribbon.
What sets the GEMpsu apart is the safe and easy-to-use connectors. Many off-the-shelf LED power supplies come with wired tails leading to the use of undesirable mains terminal blocks or the hassle of fitting a plug. GEMpsu is straight in with a PowerCon, for seamless daisy-chaining to the next unit.
On the output side, it has 2 pluggable terminals for quick swaps between loads.
With an output range of up to 48V, GEMpsu can power any device, not just LED ribbons. Plus, it has a handy 5V USB auxiliary socket for charging your phone.
Main features
- An output range of up to 48V
- Short-circuit protected
- Hassle-free connectors
- You only need to carry one power supply
Additional information
| Max Output Powers | 150W |
|---|---|
| Output Voltage | 12-48V |
| Input Voltage Range | 90-264V |
| Max Current Draw | 0.75A/1.4A @ 230V/120V |
| Power Factor | >0.94 @230V, >0.98 @120V |
| Input Connectors | 16A In/Out PowerCON |
| Output Connectors | 5mm Pluggable Screw Terminal |
| Max Ambient Temperature | 40°C/104°F |
| Over Temp Protection | Yes |
| Short-Circuit Protection | Yes |
| Length | 282mm/11.1” |
| Height | 40mm/1.6” |
| Width | 95mm/3.7” |
| Weight | 1.5kg/3.3lb |
If you would like to order this or any other Power Gems products please Get in Touch
